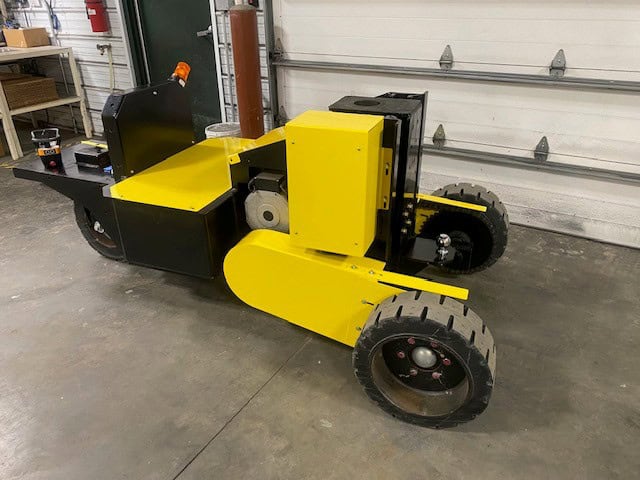

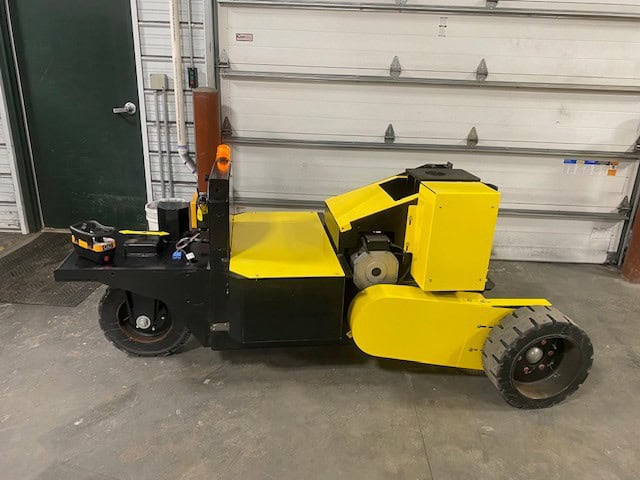

*48V model shown
The TrailerCaddy 15K Remote Steer 36V / 48V offers flexible control with a standard proportional remote control and optional belly pack style operation. Operators can choose a belly box transmitter or a combination belly box and handheld transmitter, giving them different ways to manage movement depending on preference and application.
Steering is handled through a dedicated steer wheel setup, with one 18 in solid tread steer tire as standard on both models and an 18 in dual steer wheel available as an option. Handheld control is also supported through the handheld transmitter or the belly box and handheld transmitter combination, so users can operate the unit using the configuration that best fits their workflow.
Ideal environments include:
Dock loading areas
Manufacturing and maintenance bays
Trailer lots and storage yards
Distribution centers and staging lanes
The TrailerCaddy 15k Remote Steer is ideal for moving and positioning:
RVs, horse trailers, toy haulers, equipment dollies, and boats.
Dock doors, maintenance bays, storage yards, rental fleets, and any facility needing precise trailer placement in tight lanes or yards.
Situations where a full-size yard tractor or pickup is impractical; operators can walk with the load, improving safety and maneuverability.
The TrailerCaddy 15K Remote Steer integrates a heavy-duty steel frame, powerful electric drive, and hydraulic lifting system for consistent control of heavy trailer loads.
Heavy-duty steel construction
High-tech speed controller
Neutral throttle braking
Adjustable acceleration and braking
15,000 lb / 10 in hydraulic pump lift system
Proportional wireless remote control
Travel speed 0–2 mph, forward and reverse
Battery discharge indicator
External charger
One 18 in solid-tread steer wheel
Two 18 in solid-tread drive wheels (7 in wide)
Safety stop switch
36V Model
Three 12V 150 A/H batteries
3 HP / 36VDC drive system
48V Model
Four 12V 150 A/H batteries
48V transaxle drive system
Connections and Hitching
King pin receiver (tall or short)
Ball/Pintle bracket sub assembly
15-ton pintle hook insert
Custom engineered attachments
Battery and Power Upgrades
6-battery configuration for 36V
8-battery configuration for 48V
AGM battery upgrades
AGM battery box frame options (36V and 48V)
Control & Safety Enhancements
Belly-box transmitter
Handheld transmitter
Dual-transmitter package
Horn assembly
Safety light assembly
Fully enclosed chain guards
Steer platform counterweight kit
18 in dual steer wheel package

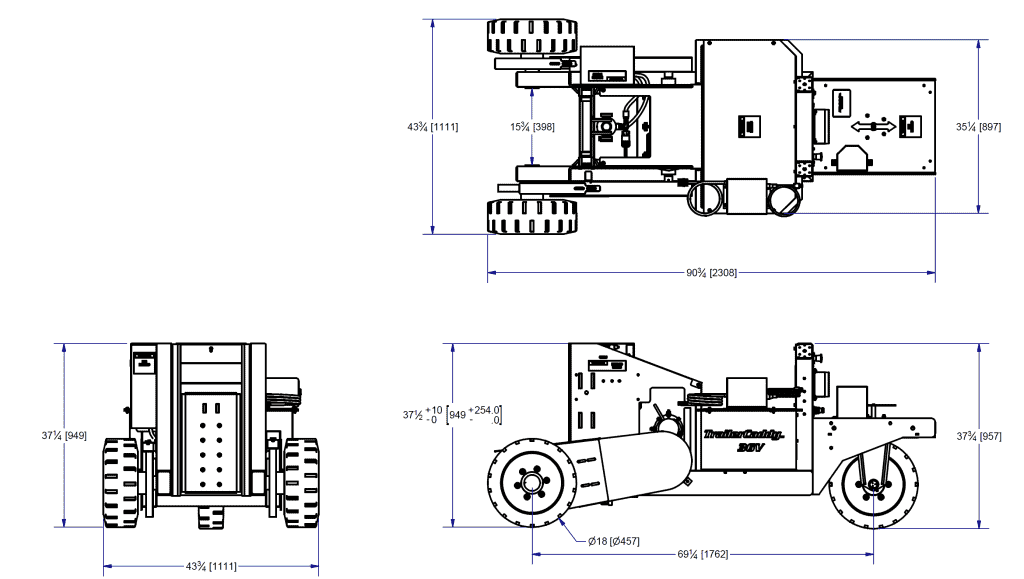

TrailerCaddy 15K Remote Steer 36V

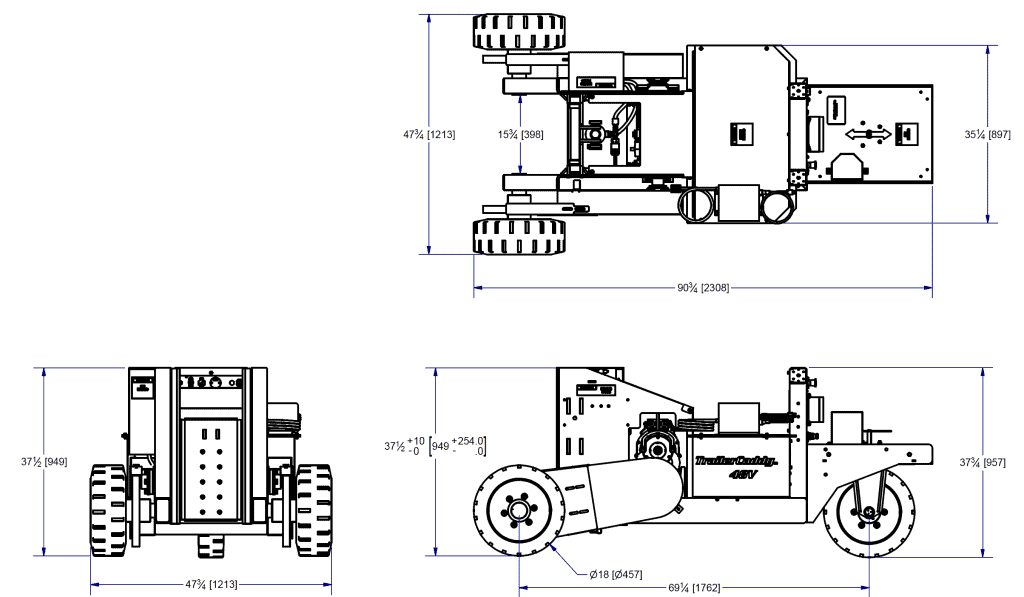

TrailerCaddy 15K Remote Steer 48V
